Assembly table VakuuCar+: Efficient manufacturing, finishing and assembly of workpieces

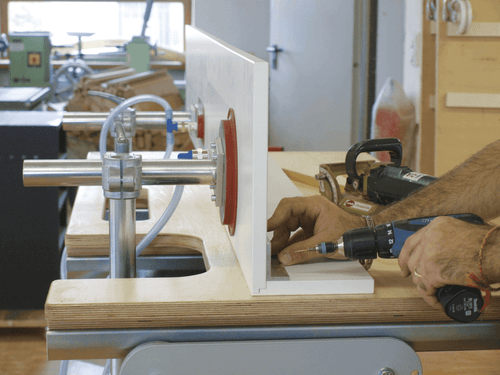

The versatile assembly table VakuuCar+ offers your employees optimal working conditions for manual workstations. On the stable and height-adjustable basic construction there is an integrated rotary axis in longitudinal direction, on which powerful vacuum cups are mounted. This enables your employees to securely and quickly fix a wide variety of workpieces without leaving marks using vacuum clamping technology. In this way, products can be processed in an optimum working posture, saving time and ensuring ergonomics. Rotatable suction cups and the foot-controlled vacuum pump make it possible to change the position of the workpiece without interrupting machining or assembly. Tools and materials that are frequently used can be neatly stored by the operator underneath the expandable work surface. When using the optional accessories (drawers or containers), they are protected from contamination. A power strip within easy reach allows additional tools or equipment to be conveniently connected. In this way, everything is within easy reach. Cost-intensive non-productive time is minimized.
- Vacuum pump for continuous operation (performance: 3 m³/h) incl. dust filter
- Foot valve for unclamping the clamped workpieces
- Base device with 90° swivel axis
- Flat vacuum suction cups ∅ 190 mm
- Flat vacuum suction cups 250 mm x 80 mm
- Integrated outlet strip for ancillary devices
- Pull-outs on both sides + 450 mm
- 5 support bars with squared timber to pull out
Due to the size and weight of this product, special delivery arrangements need to be made. Please select pickup in store at checkout and we will contact you to arrange delivery.
